Description
Multifunction
1. Transmitter Function: It has three signal application modes: induction method, direct method, and clamp method, which are suitable for different occasions.

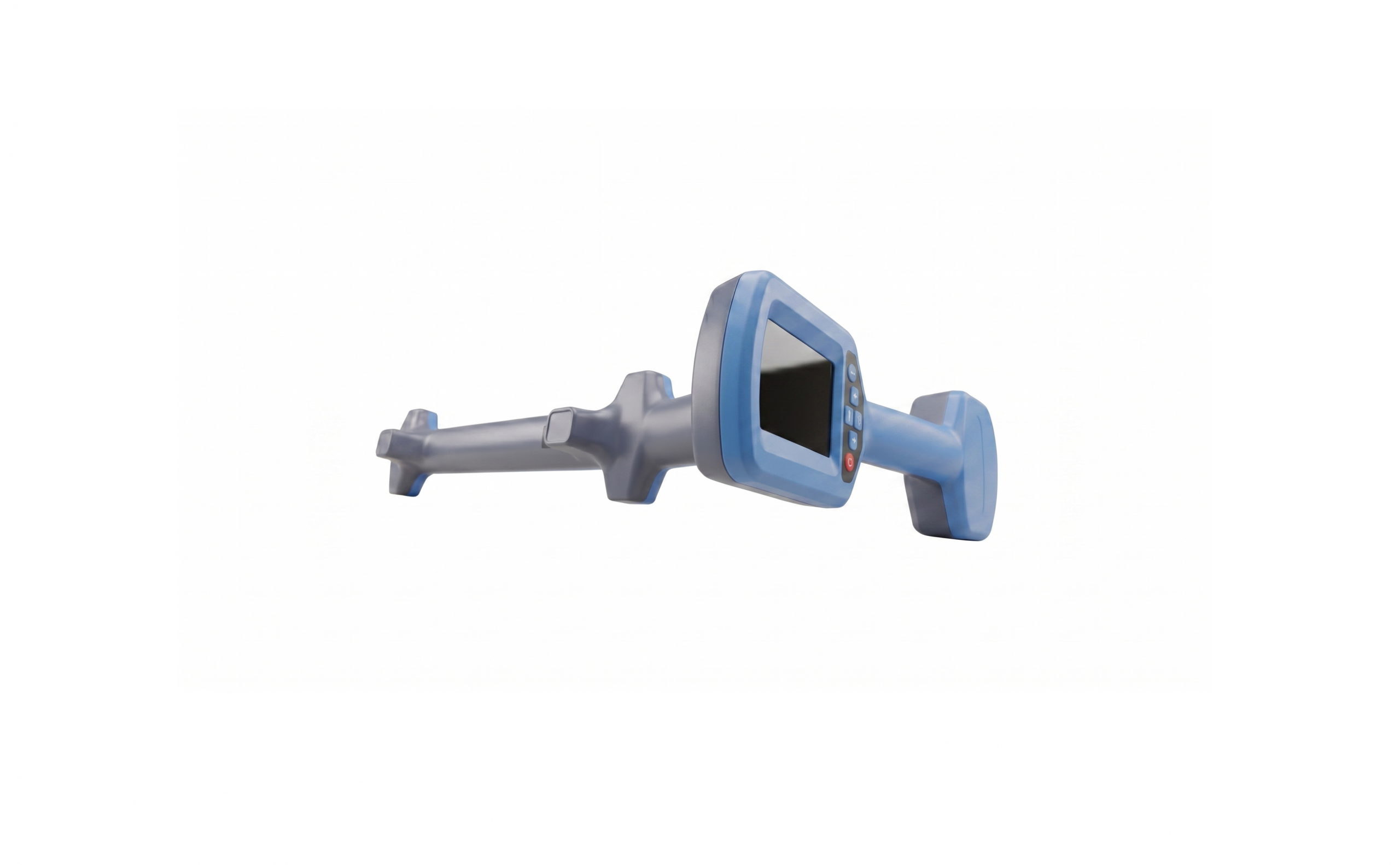

2. Receiver Function: Used to detect the position, direction, and depth of the underground cable.
3. Left and right positioning arrows indicate the position of the target cable, allowing for fast and accurate positioning; front and rear arrows and the dB value indicate the position and size of the cable fault point.
4. With backlight function, suitable for night rescue.
5. Precise positioning of underground cable fault points.
6. Current Measurement: Measures the current applied by the transmitter to the cable under test.
7. Multimeter Function: Can measure output voltage, current, impedance, and power. Also tests cable continuity and insulation quality during the cable fault detection process.
8. External Inductive Clamp: Suitable for detecting cables that cannot be directly connected to the signal application.
High-Precision Positioning
Multiple measurement modes for cable positioning (Valley mode, Peak mode, Wide Peak mode, Arrow Peak mode) can be cross-checked to ensure cable positioning accuracy.
1. Maximum Value Method: The peak component, wide peak mode, and arrow peak mode can be used to determine changes in the horizontal component or horizontal gradient based on the maximum value position.
2. Minimum Value Method: In Valley mode, by measuring the change of the vertical component, positioning is done according to the position of its minimum value.
Multiple Sound Methods
A variety of sound methods are optional and can be cross-checked.
1. Dual horizontal coil direct reading method;
2. Single horizontal coil 80% method, 50% method.
Strong Anti-Interference
1. Many observation parameters: Can measure horizontal component, vertical component, and horizontal gradient.
2. High transmission power: Transmitter output power up to 10W, continuously adjustable, selected as needed.
3. More working frequencies:
Transmitter frequencies: 128Hz, 512Hz, 1 KHz, 2 KHz, 8 KHz, 33 KHz, 65 KHz, 83 KHz.
Receiver frequencies: radio, 50Hz, 100Hz, 512Hz, 1KHz, 2KHz, 8KHz, 33KHz, 65KHz, 83KHz (depends on instrument model; reception frequency may vary). Select the appropriate operating frequency based on the target cable characteristics (material, structure, depth, length, etc.) and environment.
Easy Operation
1. Intuitive: Using a graphic display, continuously shows various parameters and signal strength in real time during detection.
2. Automatic: Automatically switches to dual horizontal antenna mode when measuring depth and automatically adjusts receiver sensitivity for optimal signal reception. Sound automatically returns to pre-detection mode.
Continuous Operation with Low-Cost Use
The transmitter is equipped with a high-capacity lithium battery pack, sufficient for a full day of field operation, and is rechargeable, greatly reducing detection costs. Normally, if the transmitter battery is fully charged, the built-in battery powers the device. If the transmitter battery is insufficient during use but the detection task is incomplete, a dedicated power adapter can be connected, and the instrument can operate normally without waiting for a full charge.
| Receiver | |
| Positioning Accuracy | ± 5% depth (without interference from adjacent pipes) |
| Depth Measurement Accuracy | ± 5% depth (without interference from adjacent pipes) |
| Current Measurement Accuracy | ± 5% actual current (without interference from adjacent pipes) |
| Depth Measurement Range | 0-8 meters |
| WORK MODE | Valley mode, Peak mode, Wide Peak mode, Arrow Peak mode |
| WORK FREQUENCY | Radio, 50Hz, 100Hz (CPS), 512Hz, 1KHz, 2KHz, 8KHz, 33KHz, 65KHz, 83KHz |
| Menu Configuration | Configuration menu in English |
| Operating Temperature | -20 ℃ ~ +50 ℃ |
| Battery | 7.4V Lithium Battery |
| Dimensions | 595mm × 136mm × 238mm |
| Weight | 2.5Kg (battery included) |
